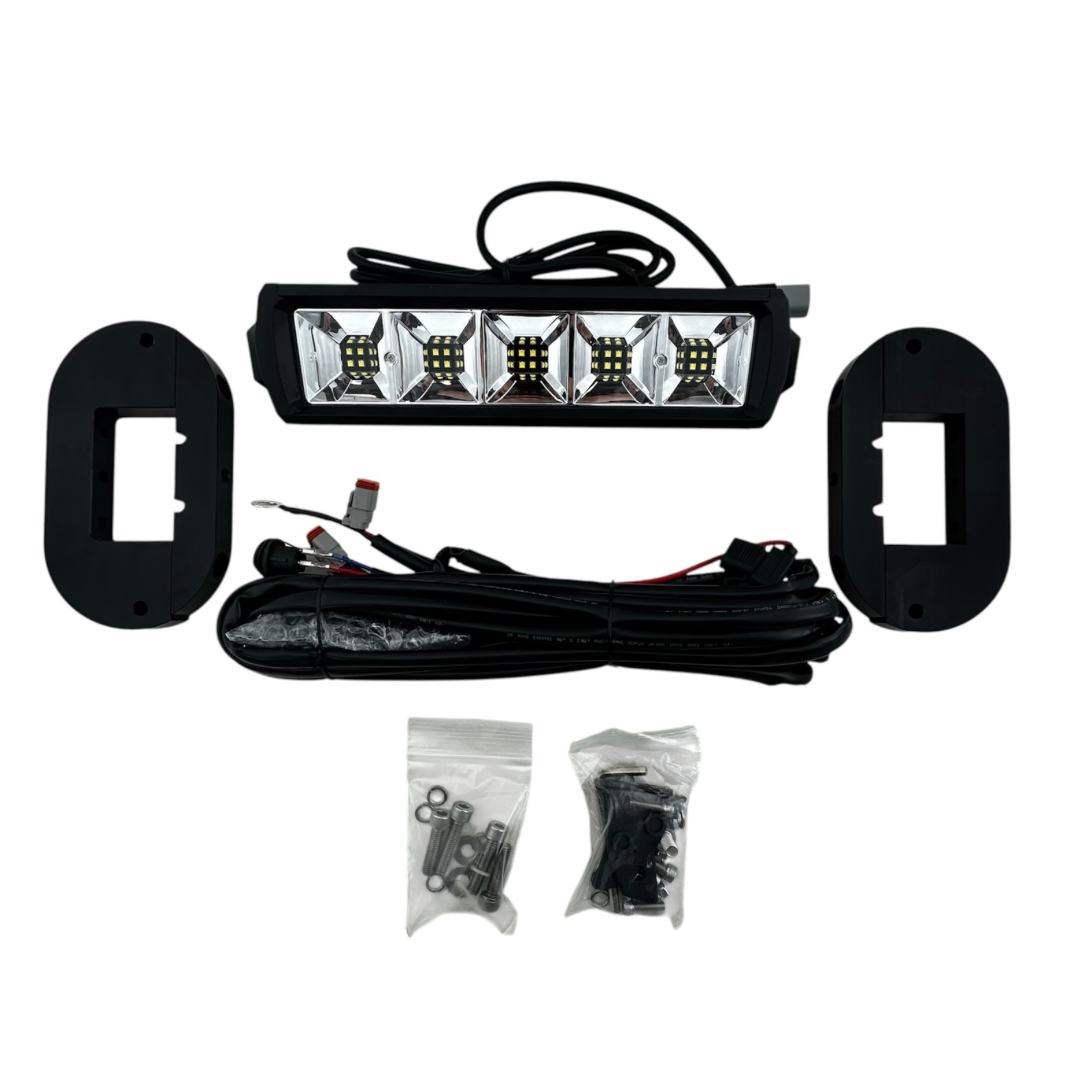

This single light bar kit is designed to fit a wide variety of tractors, mowers, and more. It can be mounted to light the path in front or behind you. The kit is designed to keep the light tucked inside the aluminum roll bar brackets to reduce damage to the light, and raise the clearance of the roll bar by only 1 inch.
- 2 mounting brackets
- 10" light bar
- 5000 lumens 30w light
- Flood light pattern
- IP68 waterproof rating
- Universal wiring harness
- 1 year warranty on light
Fitment
Choose the bracket option matching your roll bar: 1.5 x 3 inches, 2 x 2 inches, or 2 x 3 inches. The kit is intended for tractors, mowers, and other equipment with the matching roll bar dimensions.
Installation overview
The light can face forward or backward and is positioned inside the aluminum roll bar brackets to help reduce damage. The kit adds 1 inch to roll bar height and includes a universal wiring harness.
Mounting steps
- Mount the light to the bracket with a nylon spacer between them, using the M8 x 1.25 x 35 bolt. Leave it loose for adjustment.
- Center the light kit on the roll bar using the M8 x 1.25 x 30 bolt and lock washer. Leave it loose.
- Adjust the light to the desired position, then tighten the light to the bracket.
- Tighten the light kit to the roll bar.
Download the light-kit mounting instructions (PDF)
